Liquid Filter

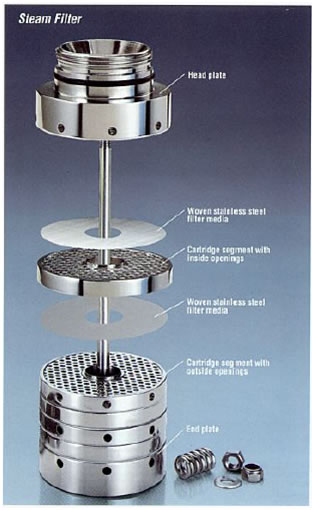

The patented segmented construction of MICROPURE filters offers significant advantages over conventional cartridge filters (shown above). Steam flows into the openings on the outside of each segment disc and passes through the filter and into an adjacent disc. Filtered steam exits through the opening at the center of the cartridge, free from contaminants that can affect the quality of your product.

Why you need Filtered Liquids

To protect costly quality, maintain processing efficiency and reduce downtime, it’s important to remove particulates from components liquids and final liquid products prior to filling. Micropure Trap Filters help prevent line debris from entering your product by filtering out particulate and other process contaminants as small as 3 microns.

How MicroPure Liquid Filters do it better

System Security
Self Sealing woven stainless steel media with absolute micron retention to fit your need. We have media from 1 micron to 100 micron.
Each Filter Membrane works independently allowing for maximum filtering capability.
A stainless steel tension rod and parts that provides continued support upstream and downstream of the filter membrane.
The design of Micropure Segmented Filters has been subjected to extensive testing in
Europe and the United States.

Application Versatility

The required segmented element length and diameter are determined by your application giving each application an individualized fit.
Unlike conventional cartridge filters, Micropure's Segmented filters can handle bi-directional flow.
Filters allow higher flow rates than conventional filters while maintaining submicron bacterial efficiency.**
High Temperature Tolerance

Unlimited Reusability

Stainless Steel segmented discs, which will out last the conventional cartridge style filters.
Since each membrane acts independently, Increasing flow rate or pressure can be achieved by simply adding more membranes/segmented element discs.

Economical

You only Replace the media discs. The element stays in the filter for its entire life.
Cost of Ownership is significantly less than competitors.

Convenience

MicroPure filters can be steam sterilized "in-situ" or in place up to 150 times with no loss of filtering effectiveness as validated by an internationally recognized food laboratory.
Micropure filters can Also be sterilized using autoclave, hydrogen peroxide, steam or a variety of sanitizing agents.*
Membrane Replacement is Simple and Easy.
Simple, on-site visual inspection of individual filter membrane
Membranes are easily removable for laboratory analysis or culture.

Micropure Trap Filters feature a patented segmented design that offers significant advantages over conventional filter cartridges.

Woven stainless steel filter media – supported by stainless steel segmented discs in stainless steel housing – maintains its integrity under conditions that cause conventional sintered media to disintegrate.

Unlike other filter media that have a shorter life and must be disposed or removed frequently for acid cleaning, MICROPURE filter media can be easily and repeatedly cleaned by backflushing for a full year under normal use. When replacement finally becomes necessary, the cost is considerably less than our competitors. The reason: only the media is replaced, not the entire element.

liquid Filter The picture to the right shows the difference between the two types of media. Our media traps all particles upstream where the competitor’s filter traps the particles. Our media has a one year warranty on strength and integrity and the competitor’s cartridge can disintegrate after repeated heat treatments.

MICROPURE has the filter size you need from 16 gal/hr to 4,200 gal/hr (based on water, 3 um grade). If requirements change, you can often keep the same housing. By changing the media porosity or the number of segmented filter discs you can meet your new requirements.

Micropure Trap Filters give you significantly more control over the quality of your product at every critical phase of operation. Our Stainless steel filter media can be repeatedly backflushed, your downtime and replacement costs are considerably less. With MICROPURE, liquid filtration is simple, effective and cost efficient.

No other filter offers this combination of features:

Segmented design allows exchange of media to meet changing requirements, inspect elements, or to replace old elements
Available in multiple sizes from 3 to 50 microns and 4 diameter sizes for exceptional versatility
Housing and Segmented Discs warranted for 5 years
Bi-directional flow capability
Built of high grade stainless steel- to tolerate extreme pressure and temperature variations for unlimited reusability
Easy to design into virtually any process system

Warranty

Micropure Filtration, Inc. provides a five year limited warranty on all parts except O-rings and media. A one year warranty on filter media is based on periodic backflushing to prevent overloading. These warranties extend only to components purchased from Micropure or a certified Micropure Filtration Vendor.

Technical Data

Maximum Operating Pressure	232 psig	16 bar
Maximum Differential Pressure	75 psid	5.2 bar
Maximum Reverse Pressure	75 psid	5.2 bar
Pore Sizes	3,5,10,25,32,50 micron. (Other sizes available upon request)
Material of Construction:
Housing	304 SS
Segmented Filter Discs	304 SS
Filter Media	304 SS
O-Rings	EPDM
