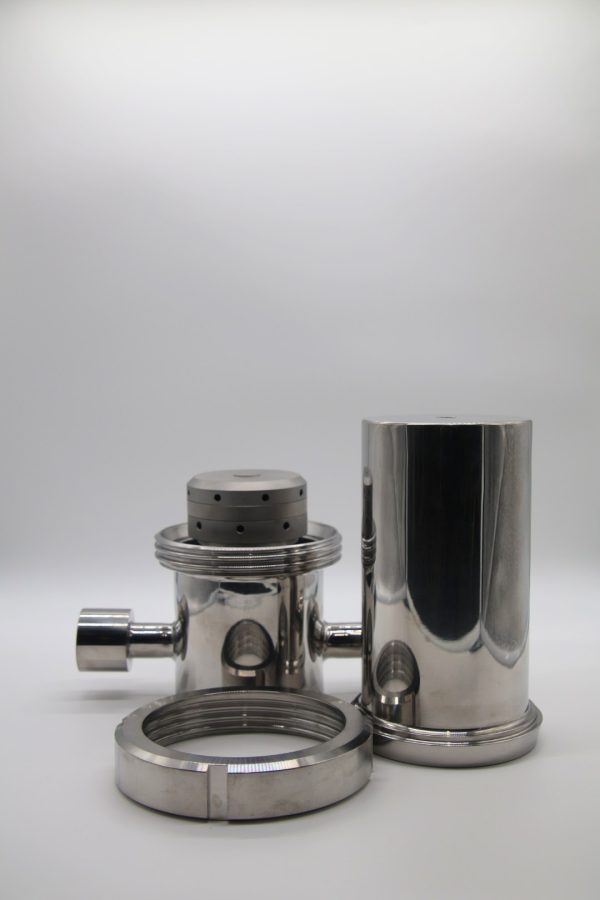

PSF-0802100N, 82 mm 2 Layer Sterile Air and Gas Filter with 1 inch FNPT Connections

82 mm 2 Layer Sterile Air and Gas Filter with 1 inch FNPT connections

$2,850.00

Element Diameter

82 mm

Process Connection Size

1 inch

Process Connection Type

FNPT

Clear

Spare Parts

82 mm PTFE 0.2 Micron Replacement Filter Media(Absolute Rated) $35.00

CDK-ALL, Condensate Drain Kit for Standard Micropure Filtration Housings. Connections for inlet and outlet are 1/4" BSPP Male. Set of 2 valves is included in the Kit. $375.00

SPK-82, Spare Parts Kit for 82 mm Filter. Kit includes four 13 mm bolts, two 13 mm locking bolts, two 13 mm washers, two 75 KG compression springs, two 2" Black EPDM O-rings, and two EPDM Housing Gaskets. $150.00

$2,850.00

PSF-0802100N.PDF

Technical Information

SCFM Air/Gas Flow @ 100 psi & 0.2 Micron
Filter Type	(SCFM)	Pipe Size Available** (Inch)	Pipe Connection Available*	Filter Weight (lbs)
PSF-0602	24	0.5,1	FNPT, Tri-Clamp, Flange	8
PSF-0604	48	0.5,1	FNPT, Tri-Clamp, Flange	9
PSF-0606	72	0.5,1	FNPT, Tri-Clamp, Flange	10
PSF-0802	72	1,1.5,2	FNPT, Tri-Clamp, Flange	14
PSF-0804	144	1,1.5,2	FNPT, Tri-Clamp, Flange	15
PSF-0806	216	1,1.5,2	FNPT, Tri-Clamp, Flange	15
PSF-0808	288	1,1.5,2	FNPT, Tri-Clamp, Flange	16
PSF-0810	360	1,1.5,2	FNPT, Tri-Clamp, Flange	16
PSF-0812	432	1,1.5,2	FNPT, Tri-Clamp, Flange	18
PSF-1008	408	2,2.5,3	FNPT, Tri-Clamp, Flange	30
PSF-1010	510	2,2.5,3	FNPT, Tri-Clamp, Flange	30
PSF-1012	612	2,2.5,3	FNPT, Tri-Clamp, Flange	31
PSF-1014	714	2,2.5,3	FNPT, Tri-Clamp, Flange	32
PSF-1408	816	2,3,4	FNPT, Tri-Clamp, Flange	44
PSF-1410	1020	2,3,4	FNPT, Tri-Clamp, Flange	45
PSF-1412	1224	2,3,4	FNPT, Tri-Clamp, Flange	48
PSF-1414	1428	2,3,4	FNPT, Tri-Clamp, Flange	50
PSF-1416	1632	2,3,4	FNPT, Tri-Clamp, Flange	54
PSF-1418	1836	2,3,4	FNPT, Tri-Clamp, Flange	56
PSF-1420	2040	2,3,4	FNPT, Tri-Clamp, Flange	58
PSF-1426	2652	2,3,4	FNPT, Tri-Clamp, Flange	62
PSF-1432	3264	2,3,4	FNPT, Tri-Clamp, Flange	65

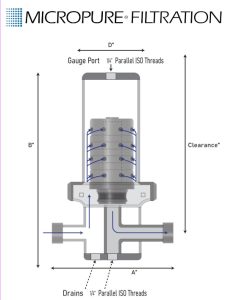

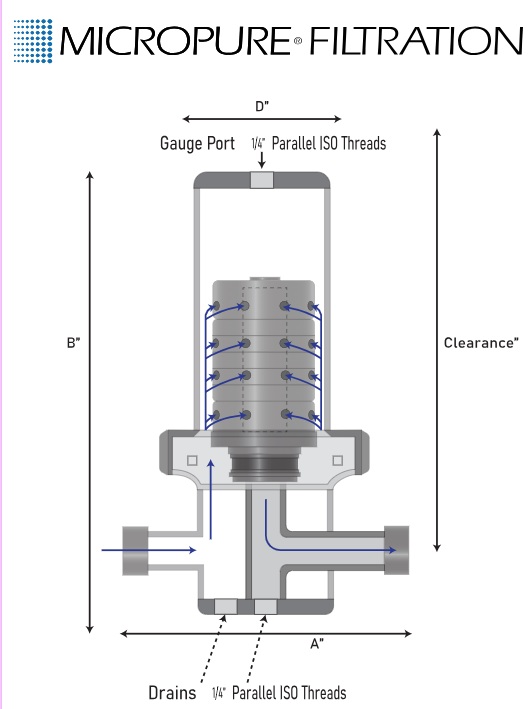

Filter Type	A (in)	B (in)	C (in)	D (in)	Filter Weight (lbs)
PSF-0602	6.5	9.5	12	3.15	8
PSF-0604	6.5	9.5	12	3.15	9
PSF-0606	6.5	9.5	12	3.15	10
PSF-0608	6.5	9.5	12	3.15	12
PSF-0802	8.5	11.5	15.5	4	14
PSF-0804	8.5	11.5	15.5	4	15
PSF-0806	8.5	11.5	15.5	4	15
PSF-0808	8.5	11.5	15.5	4	16
PSF-0810	8.5	11.5	15.5	4	16
PSF-0812	8.5	11.5	15.5	4	18
PSF-1008	13	15.5	20.5	5	30
PSF-1010	13	15.5	20.5	5	30
PSF-1012	13	15.5	20.5	5	31
PSF-1014	13	15.5	20.5	5	32
PSF-1408	13	26	33.5	6	44
PSF-1410	13	26	33.5	6	45
PSF-1412	13	26	33.5	6	48
PSF-1414	13	26	33.5	6	50
PSF-1416	13	26	33.5	6	54
PSF-1418	13	26	33.5	6	56
PSF-1420	13	26	33.5	6	58
PSF-1426	13	26	33.5	6	62
PSF-1432	13	26	33.5	6	65

Technical Data
Maximum Operating Pressure	232 psig	16 bar
Maximum Differential Pressure	75 psid	5.2 bar
Maximum Reverse Pressure	75 psid	5.2 bar
Micron Pore Sizes	0.2 or 0.1 micron absolute. (Other sizes available upon request)

Material of Construction:
Housing	304 SS or 316 SS
Segmented Filter Discs	304 SS or 316 SS
Filter Media	304 SS of 316 SS
O-Rings	EPDM, Viton or PTFE

Micropure Filtration, Inc. provides a five year limited warranty on all parts except O-rings and media. A one year warranty on filter media is based a maximum loading of 140 million particles per cubic meter (normal conditions). These warranties extend only to media purchased from Micropure or a certified Micropure Filtration Vendor.
