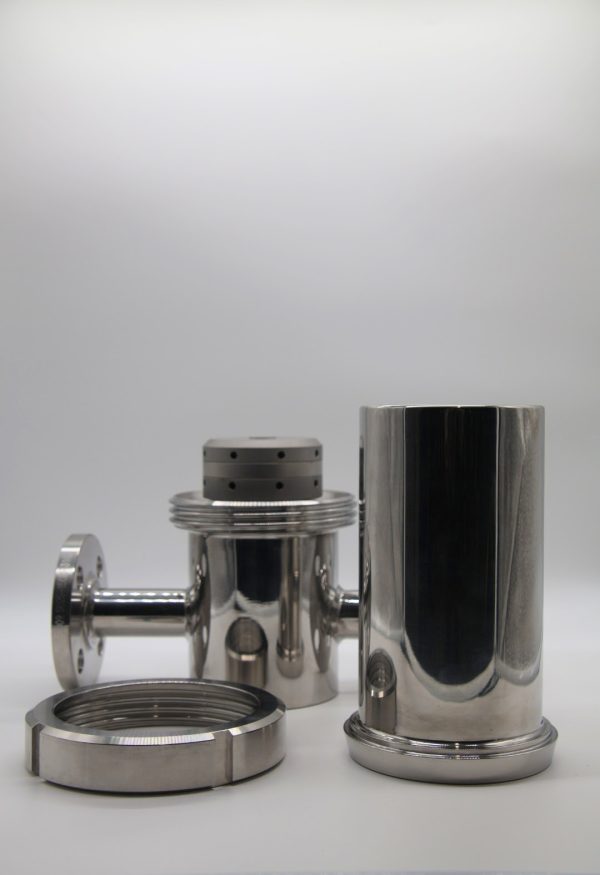

PDF-0802100F, Culinary Steam Filter with 1 inch 150 lb Flange Connections.
82 mm 2 Layer Culinary Steam Filter with 1 inch 150 lb Flange connections. Steam Filter has a Capacity of 300 lbs per hour at 100 PSI. Steam Filter can come with 1,2,3, or 5 Micron element.
Steam Filter presentation
PDF-0802100F Drawing
$2,850.00
- Sterilization or Regeneration can be done in place without loss of effectiveness or absolute micron rating.
- Media rated for 150 cleanings and has been validated by internationally recognized food lab.
- Micropure filters can also be sterilized using autoclave, hydrogen peroxide, or a variety of sanitizing agents.*
- Media Replacement is short, simple and easy process.
- Simple, on-site visual inspection of individual filter media.
- Media is easily removable for laboratory analysis or culture.
- Woven stainless steel media with absolute micron retention
- Media available in sizes 1,2,3,5 micron. For other micron sizes, check out our steam filters page.
- Each piece of filter media works independently allowing for maximum filtering capability and extremely low PSID.
- A stainless steel rod and compression spring provides continued support upstream and downstream of the filter media.
- The design of Micropure Segmented Filters has been subjected to extensive testing in Europe and the United States.
- Stainless Steel segmented discs, which will outlast the conventional cartridge style filters.
- Since each filter media disc acts independently, Micropure Filters can be adapted to changes in pressure or flow rate requirements.
- The element height and diameter are determined by your application giving each application an individualized fit.
- Unlike conventional cartridge filters, Micropure’s segmented filters can handle bi-directional flow.
- Filters allow higher flow rates than conventional cartridge filters while maintaining submicron bacterial efficiency.**
- High Temperature Tolerance
Technical Information
| Steam Flow Rate @ 100 psi & 3 Micron Absolute | ||||
|---|---|---|---|---|
| Filter Type | (lb/hr) | Pipe Size Available** (Inch) | Pipe Connection Available* | Filter Weight (lbs) |
| PDF-0602 | 75 | 0.5,1 | FNPT, Tri-Clamp, Flange | 8 |
| PDF-0604 | 150 | 0.5,1 | FNPT, Tri-Clamp, Flange | 9 |
| PDF-0606 | 225 | 0.5,1 | FNPT, Tri-Clamp, Flange | 10 |
| PDF-0802 | 300 | 1,1.5,2 | FNPT, Tri-Clamp, Flange | 14 |
| PDF-0804 | 600 | 1,1.5,2 | FNPT, Tri-Clamp, Flange | 15 |
| PDF-0806 | 825 | 1,1.5,2 | FNPT, Tri-Clamp, Flange | 15 |
| PDF-0808 | 975 | 1,1.5,2 | FNPT, Tri-Clamp, Flange | 16 |
| PDF-0810 | 1,200 | 1,1.5,2 | FNPT, Tri-Clamp, Flange | 16 |
| PDF-0812 | 1,375 | 1,1.5,2 | FNPT, Tri-Clamp, Flange | 18 |
| PDF-1008 | 1,500 | 2,2.5,3 | FNPT, Tri-Clamp, Flange | 30 |
| PDF-1010 | 1,725 | 2,2.5,3 | FNPT, Tri-Clamp, Flange | 30 |
| PDF-1012 | 2,250 | 2,2.5,3 | FNPT, Tri-Clamp, Flange | 31 |
| PDF-1014 | 2,475 | 2,2.5,3 | FNPT, Tri-Clamp, Flange | 32 |
| PDF-1408 | 3,000 | 2,3,4 | FNPT, Tri-Clamp, Flange | 44 |
| PDF-1410 | 3,750 | 2,3,4 | FNPT, Tri-Clamp, Flange | 45 |
| PDF-1412 | 4,500 | 2,3,4 | FNPT, Tri-Clamp, Flange | 48 |
| PDF-1414 | 5,250 | 2,3,4 | FNPT, Tri-Clamp, Flange | 50 |
| PDF-1416 | 6,000 | 2,3,4 | FNPT, Tri-Clamp, Flange | 54 |
| PDF-1418 | 6,750 | 2,3,4 | FNPT, Tri-Clamp, Flange | 56 |
| PDF-1420 | 7,500 | 2,3,4 | FNPT, Tri-Clamp, Flange | 58 |
| PDF-1426 | 9,750 | 2,3,4 | FNPT, Tri-Clamp, Flange | 62 |
| PDF-1432 | 12,000 | 2,3,4 | FNPT, Tri-Clamp, Flange | 65 |
| Filter Type | A (in) | B (in) | C (in) | D (in) | Filter Weight (lbs) | |
|---|---|---|---|---|---|---|
| PDF-0602 | 6.5 | 9.5 | 12 | 3.15 | 8 | |
| PDF-0604 | 6.5 | 9.5 | 12 | 3.15 | 9 | |
| PDF-0606 | 6.5 | 9.5 | 12 | 3.15 | 10 | |
| PDF-0608 | 6.5 | 9.5 | 12 | 3.15 | 12 | |
| PDF-0802 | 8.5 | 11.5 | 15.5 | 4 | 14 | |
| PDF-0804 | 8.5 | 11.5 | 15.5 | 4 | 15 | |
| PDF-0806 | 8.5 | 11.5 | 15.5 | 4 | 15 | |
| PDF-0808 | 8.5 | 11.5 | 15.5 | 4 | 16 | |
| PDF-0810 | 8.5 | 11.5 | 15.5 | 4 | 16 | |
| PDF-0812 | 8.5 | 11.5 | 15.5 | 4 | 18 | |
| PDF-1008 | 13 | 15.5 | 20.5 | 5 | 30 | |
| PDF-1010 | 13 | 15.5 | 20.5 | 5 | 30 | |
| PDF-1012 | 13 | 15.5 | 20.5 | 5 | 31 | |
| PDF-1014 | 13 | 15.5 | 20.5 | 5 | 32 | |
| PDF-1408 | 13 | 26 | 33.5 | 6 | 44 | |
| PDF-1410 | 13 | 26 | 33.5 | 6 | 45 | |
| PDF-1412 | 13 | 26 | 33.5 | 6 | 48 | |
| PDF-1414 | 13 | 26 | 33.5 | 6 | 50 | |
| PDF-1416 | 13 | 26 | 33.5 | 6 | 54 | |
| PDF-1418 | 13 | 26 | 33.5 | 6 | 56 | |
| PDF-1420 | 13 | 26 | 33.5 | 6 | 58 | |
| PDF-1426 | 13 | 26 | 33.5 | 6 | 62 | |
| PDF-1432 | 13 | 26 | 33.5 | 6 | 65 |
| Technical Data | ||
|---|---|---|
| Maximum Operating Pressure | 232 psig | 16 bar |
| Maximum Differential Pressure | 75 psid | 5.2 bar |
| Maximum Reverse Pressure | 75 psid | 5.2 bar |
| Micron Pore Sizes | 1,2,3,5,10,25,32,50,100 (Other sizes available upon request) | |
| Material of Construction: | ||
|---|---|---|
| Housing | 304 SS or 316 SS | |
| Segmented Filter Discs | 304 SS or 316 SS | |
| Filter Media | 304 SS of 316 SS | |
| O-Rings | EPDM, Viton or PTFE | |
Micropure Filtration, Inc. provides a five year limited warranty on all parts except O-rings and media. A one year warranty on filter media is based on periodic backflushing to prevent overloading. These warranties extend only to components purchased from Micropure or a certified Micropure Filtration Vendor.
3A Accepted Practices for a Method of Producing Steam of Culinary Quality requires 95 % particulate filtration to 2 microns and larger (Reference No. 609-00;D.2).
