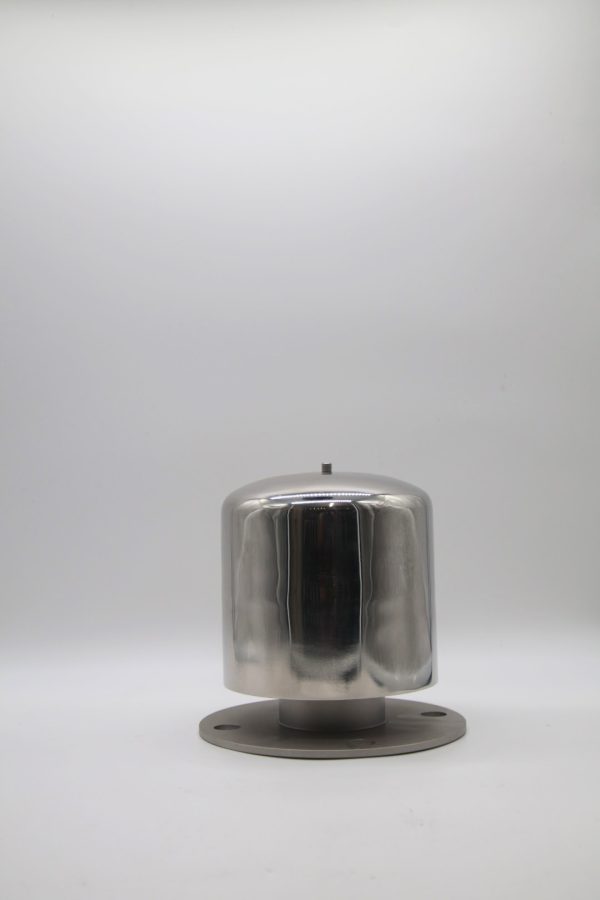

140 mm 8 Layer Sterile Tank Vent Filter with 3 inch 150 lb Flange Connections

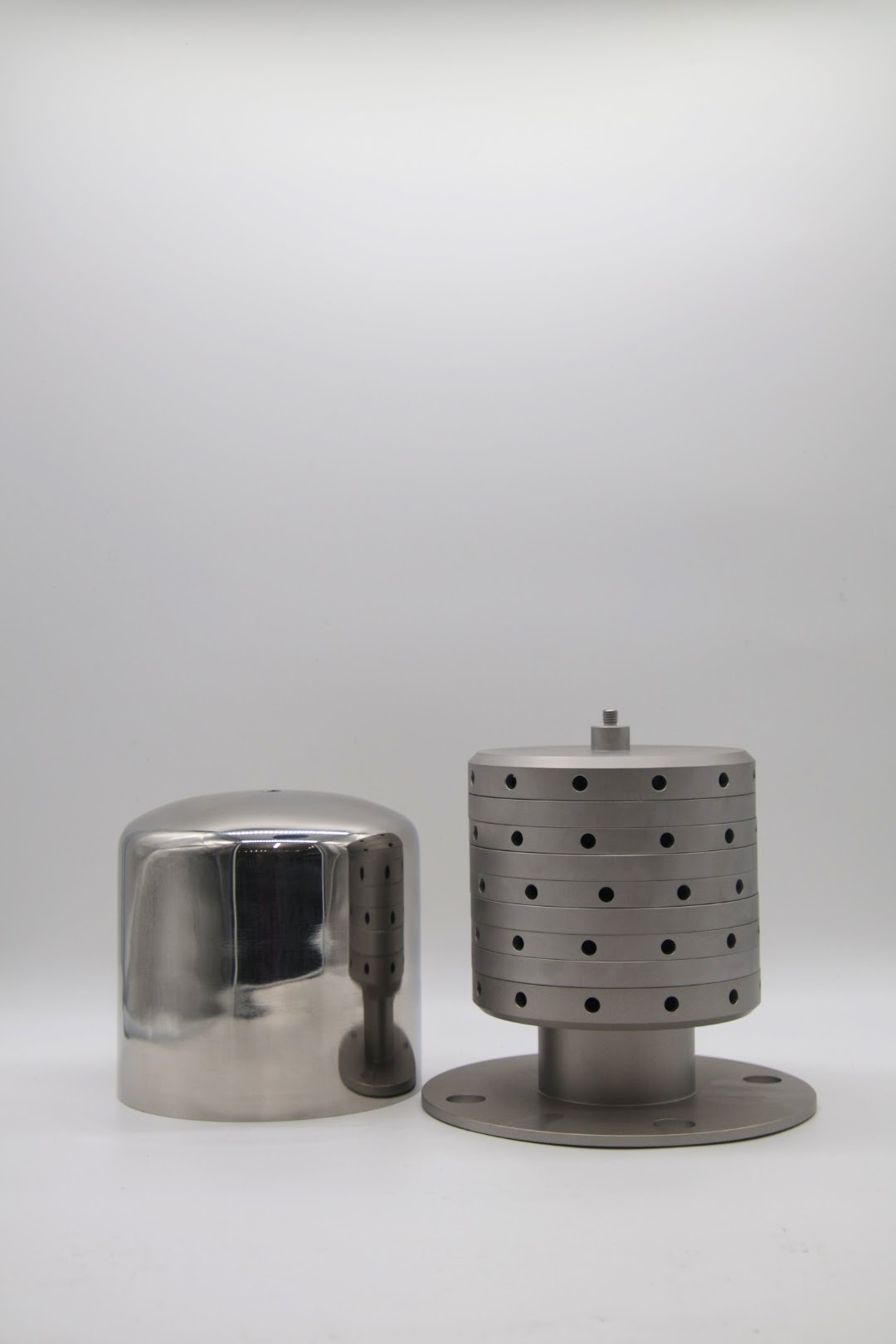

140 mm 8 Layer Sterile Tank Vent Filter with 3 inch 150 lb Flange Connections - Image 2

Products

140 mm 8 Layer Sterile Tank Vent Filter with 3 inch 150 lb Flange Connections

140 mm 8 Layer Sterile Tank Vent Filter with 3 inch 150 lb Flange Connections

$4,500.00

Spare Parts
  • 140 mm PTFE 0.2 Micron Replacement Filter Media(Absolute Rated) $60.00
  • SPK-BA, Spare Parts kit for Vent Filter. Kit includes four washers, four 13 mm Hex nuts, two 13 mm lock nuts,2 compression Springs & 2 O-ring Element seals. $100.00
    • $4,500.00



    BA-1408300F.PDF

    Technical Information​

    SCFM Air/Gas Capacity @ 0.2 Micron
    Filter Type(SCFM)Connection Size
    (in)    		Connection Type
    (in)    		Filter
    Weight (lbs)
    BA-820231 or 1.5 inTri-Clamp or Flange9
    BA-100252 inTri-Clamp or Flange10
    BA-1402102,3,4 inTri-Clamp or Flange14
    BA-1404202,3,4 inTri-Clamp or Flange15
    BA-1406302,3,4 inTri-Clamp or Flange15
    BA-1408402,3,4 inTri-Clamp or Flange16
    BA-1410502,3,4 inTri-Clamp or Flange16
    BA-1412602,3,4 inTri-Clamp or Flange18
    BA-1414702,3,4 inTri-Clamp or Flange30
    BA-1416802,3,4 inTri-Clamp or Flange30
    BA-1418902,3,4 inTri-Clamp or Flange31
    BA-14201002,3,4 inTri-Clamp or Flange32
    BA-14221102,3,4 inTri-Clamp or Flange44
    Filter TypeA
    (in)    		B
    (in)    		C
    (in)    		Connection Type
    (in)    		D
    (in)    		Filter Weight
    (lbs)
    BA-8202441 or 1.5 inTri-Clamp or Flange3.27
    BA-1002562 inTri-Clamp or Flange3.28
    BA-1402662,3,4 inTri-Clamp or Flange3.212
    BA-1404672,3,4 inTri-Clamp or Flange413
    BA-1406682,3,4 inTri-Clamp or Flange515
    BA-1408692,3,4 inTri-Clamp or Flange617
    BA-14106102,3,4 inTri-Clamp or Flange719
    BA-14126112,3,4 inTri-Clamp or Flange821
    BA-14146122,3,4 inTri-Clamp or Flange923
    BA-14166132,3,4 inTri-Clamp or Flange1025
    BA-14186142,3,4 inTri-Clamp or Flange1127
    BA-14206152,3,4 inTri-Clamp or Flange1229
    BA-14226172,3,4 inTri-Clamp or Flange1431
    Maximum Operating Pressure 232 psig 16 bar
    Maximum Differential Pressure 75   psid 5.2 bar
    Maximum Reverse Pressure 75   psid 5.2 bar
    Maximun operating temp 250°F/121°C
    Maximun Intermittent temp 400°F/204°C
    Pore Sizes 0.1 or 0.2 micron absolute. (Other sizes available upon request)
    Material of Construction:
    Housing 304 or 316 SS
    Segmented Filter Discs 304 or 316 SS
    Filter Media PTFE Membrane
    Rainproof Cover 304 or 316 SS



    Recommended Sterilization Procedures

    Saturated Steam 20 mins @ 250°F
    Hot Air 12 hrs   @ 250°F

    Micropure Filtration, Inc. provides a five year limited warranty on all parts except O-rings and media. A one year warranty on filter media is based a maximum loading of 140 million particles per cubic meter (normal conditions).   These warranties extend only to media purchased from Micropure or a certified Micropure Filtration Vendor.



    MicropureTankVentFiltertechnicaldata.pdf



    Tank-Vent-Filter-Sheet.pdf
